LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR

Product Categories
Zhangjiagang Eceng Machinery Co., Ltd.
Contact Now

LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR

Place of Origin : Jiangsu, China

Brand Name : Eceng

Model Number : q9000

Certification : CE ISO

Packaging Details : Wooden package for pet bottle blowing machine price

Supply Ability : 10 Set/Sets per Month pet bottle blowing machine price

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Delivery Time : 45days

Plastic Processed : PET, PE, PE/PP, LDPE, HDPE

Condition : New

Application : bottle

Blow Moulding Type : Stretch Blow Moulding

Voltage : Customer

Automation : Automatic

Applicable Industries : Food & Beverage Factory

Automatic : Yes

PLC : Mitsubishi

Output : 7000-8000PCS/HR

Contact Now

Good used automatic pet plastic bottle blowing machine price

LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
specification
Item
Q9000
Bottle type specification
Cavity
6
Theory output
90000
Max.volume
2L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
105mm
Bottle maximum height
330mm
Power specification
Light tube quantity
32pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
40%--70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Frozen water flow
138L/min
Machine specification
Machine size
5.5x1.6x1.9
Machine weight
4.5ton
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR

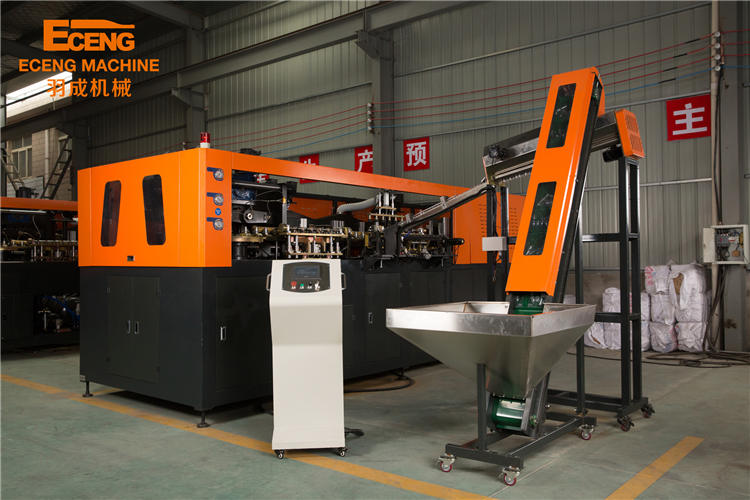

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1000 bottles per hour (500 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR

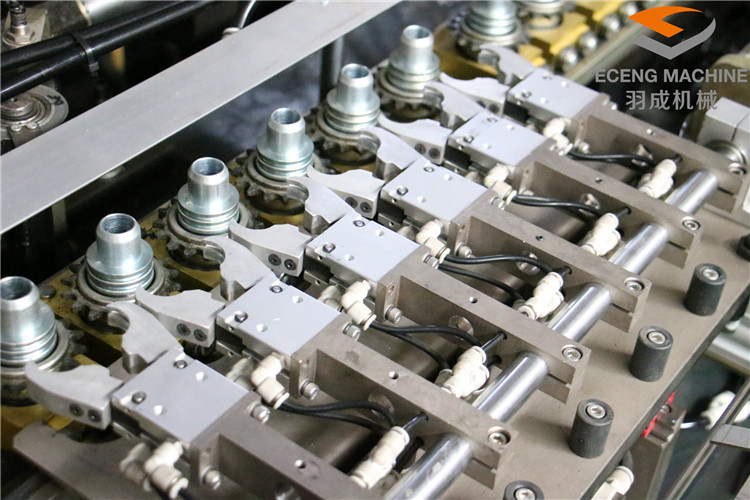

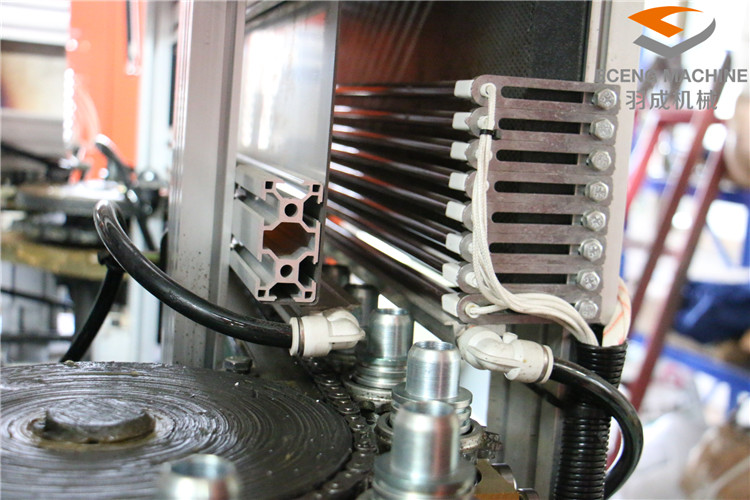

Detailed Images
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
Q linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. Qseries linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
Company Introduction
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
Packing&Shipping
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
After Sales Service
1. Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2. Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3. Quality guarantee We promise that our goods quality, specification and function all meet the demand of contract. One year warranty,during warranty period,All parts and components except those damaged by non-human factors are guaranteed free of charge (vulnerable parts are not included). In addition, the seller provides free spare parts and accessories for shipment with the machine. During warranty period ,the equipment is damaged due to incorrect operation bythe buyer,we provide maintenance solutions,the buyer will cover the loss and cost.during warranty period we provide technical service,which is usually solved by telephone,etc.if not,provide door-to-door service.
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
Related Products
LDPE HDPE PET Stretch Blowing Machine Plastic Bottle Molding 8000PCS/HR
FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
