Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml

Product Categories
Zhangjiagang Eceng Machinery Co., Ltd.
Contact Now

Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml

Brand Name : Eceng

Model Number : K4

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/Sets per Year

Delivery Time : 60days

Packaging Details : standard export wooden case or according to your requirements

Plastic Processed : PET

Application : bottle

Hollow part volume : 2L

PLC Brand : DELTA

Warranty : 1 Year

Key Selling Points : Automatic

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Contact Now

4 Cavity fully automatic Juice Sport drinks Pet Blowing Machine,Plastic Beverage Bottle Making Plant

What is pet bottle blow moulding equipment ?

pet bottle blow moulding equipment is one kind of two step stretch type bottle making plant.

pet bottle blow moulding equipment is suitable to produce plastic bottles based on PET raw material.

pet bottle blow moulding equipment is widely used to produce carbonated soft drinks

bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles etc

specification

Model K4

Bottle type specification

 Cavity 4
Max.volume 200ml-2000ml
Bottle mouth maximum overall diameter 25-29mm NECK
Bottle biggest diameter 100mm
Bottle maximum height 330mm

Capacity specification

 Theory output 8000-10000BPH
Bottle type volume 600ML
Bottle type weight 13.5g
Bottle type Round
Power specification Light tube quantity 16pcs
Light tube power 1.25KW
Maximum heating power 20KW
All electric machine installation 29KW
Actual consumption 30%--60%

Air pressure specification

 Work pressure 5-6kg/cm2
Blow bottle pressure 25-45kg/cm2
Higher -pressure gas consumption 6000Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 8000kcal/hr
Forzen water flow 120L/min
Machine specification Machine size 3.6*1.6*1.9
Machine weight 4.3ton
Product Description
4 Cavity fully automatic Juice Sport drinks Pet Blowing Machine,Plastic Beverage Bottle Making Plant
K series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 4 cavity to 12 cavity with a speed of 1500 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.
K linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.
Kseries linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .
Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml
Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml

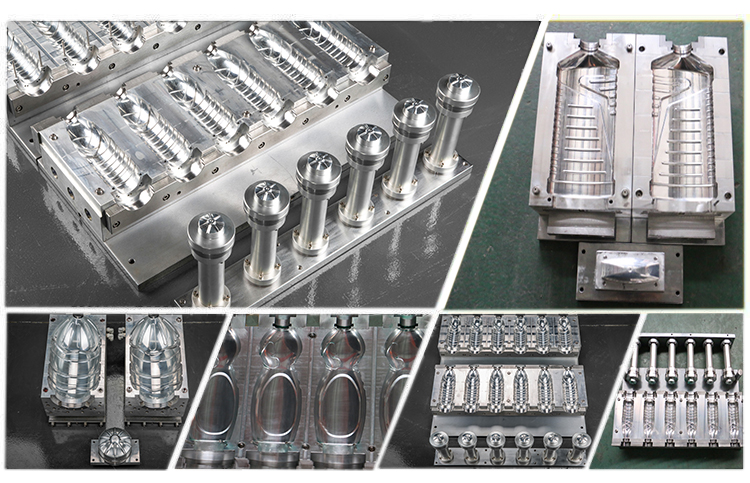

blowing mould
Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml
Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml
our advantage
1. Resonable price
2. Good after service
3. experienced skilled workers and professional engineers
4. Good quality ,excellent service ,long life mould
5. on time delivery time
6.our engineers can be online for 24 hours to serve you

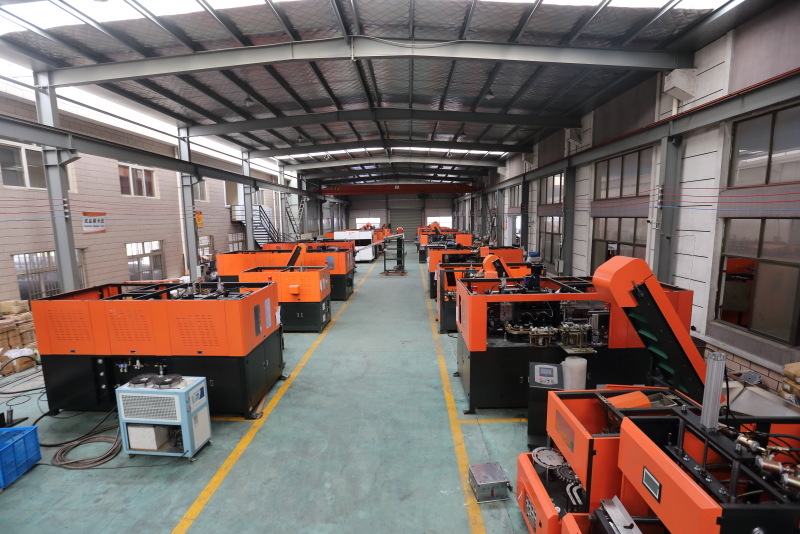

Company Introduction

Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,located in Zhangjiagang city,only 120km away from Shanghai.We are professional manufacturer of PET bottle blowing machines and plastic molds. We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 20,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging. Our products has covered all over China and exported to more than 100 countries,including Southest Asia,Middle East,South America,Africa etc.We’d like to provide high quality solution to clients with our enthusiasm and rich experience.We sincerely hope to establish business relationship with friends all over the world.

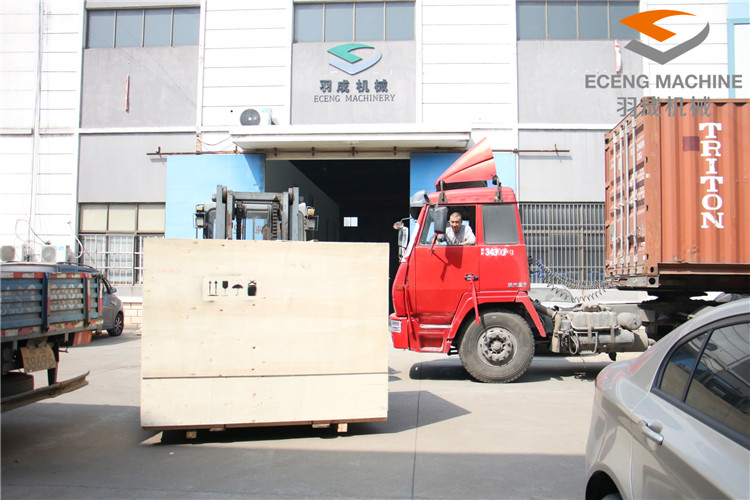

Packing&Shipping

Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
After Sales Service
1.Installation, debug
We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.the sample service
1'We can send you the video of the running machine.
2'You are welcome to come to visit our factory,and see the machine running.
4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years.
5.well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .12 Months guarantee and life-long technical support.
7.Your business relationship with us will be confidential to any third party.
8. Good after-sale service offered, please get back to us if you got any questions.

Full Automatic Stretch Blow Molding Machine 2L Pet Bottle 600ml

FAQ
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
